云效: https://devops.aliyun.com/workbench?spm=5176.168087.J_5253785160.3.913757a3BjwnNd

配置 setting.xml

步骤一：设置仓库凭证

请在settings.xml文件中设置以下仓库的访问凭证，通常settings.xml在$HOME/.m2/文件目录下。

1
2
3
4
5
6
7
8
9
10
11
12
<servers>
  <server>
    <id>rdc-releases</id>
    <username>************************</username>
    <password>************</password>
  </server>
  <server>
    <id>rdc-snapshots</id>
    <username>************************</username>
    <password>************</password>
  </server>
</servers>

步骤二：制品上传配置

请在settings.xml文件中添加以下配置。

1
2
3
4
5
6
7
8
9
10
11
12
13
<profiles>
  <profile>
    <id>rdc</id>
    <properties>
      <altReleaseDeploymentRepository>
        rdc-releases::default::https://packages.aliyun.com/maven/repository/*****/
      </altReleaseDeploymentRepository>
      <altSnapshotDeploymentRepository>
        rdc-snapshots::default::https://packages.aliyun.com/maven/repository/*****/
      </altSnapshotDeploymentRepository>
    </properties>
  </profile>
</profiles>

请在settings.xml文件中添加以下配置

1
2
3
<activeProfiles>
  <activeProfile>rdc</activeProfile>
</activeProfiles>

在settings.xml文件中添加阿里云公库代理配置。

1
2
3
4
5
6
7
8
<mirrors>
  <mirror>
    <id>mirror</id>
    <mirrorOf>central,jcenter,!rdc-releases,!rdc-snapshots</mirrorOf>
    <name>mirror</name>
    <url>https://maven.aliyun.com/nexus/content/groups/public</url>
  </mirror>
</mirrors>

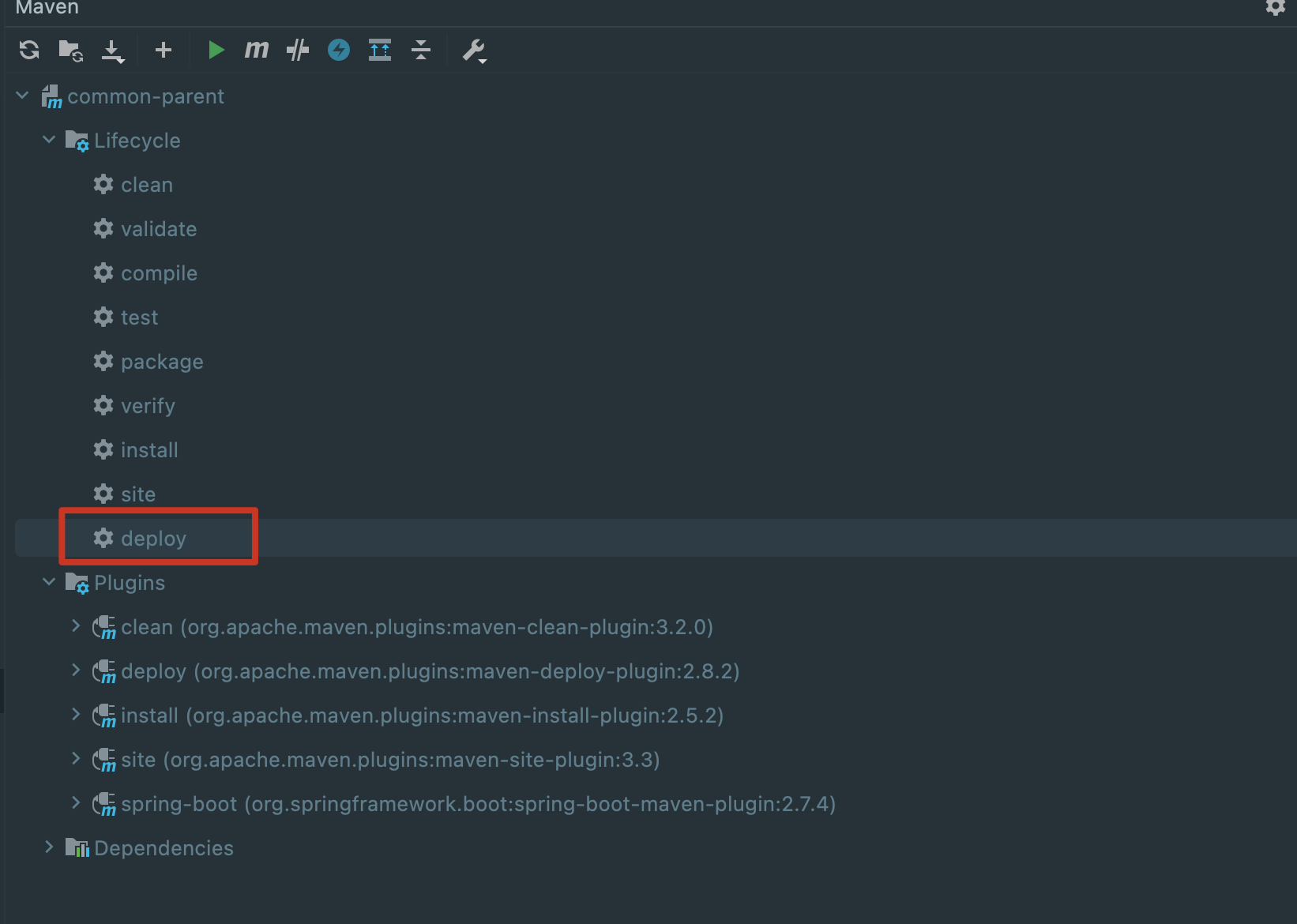

步骤三：使用 idea 中的插件 进行推送

点击 deploy

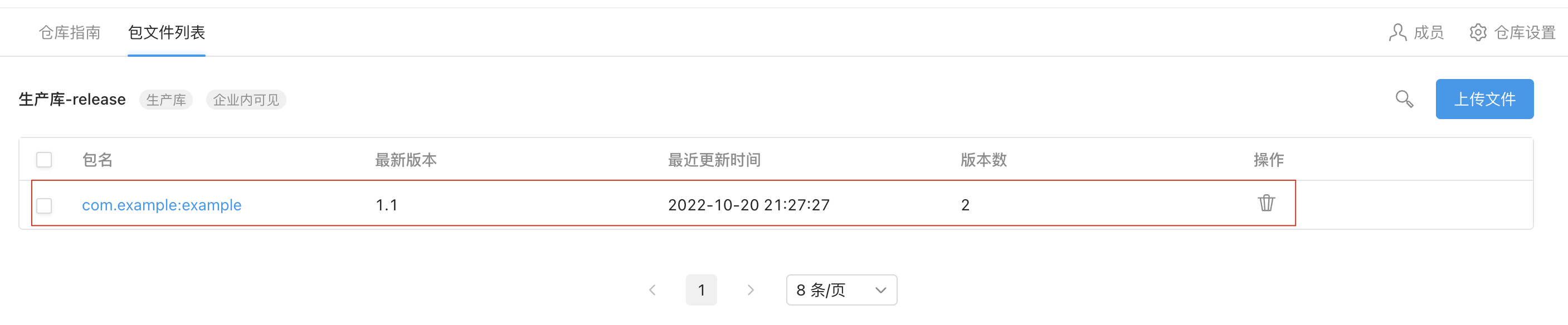

查看结果 云效的仓库是否上传成功

成功上传到仓库

Common服务

dependencyManagement : 声明依赖，不会被继承

dependencies ： 引入依赖，如果被继承，此标签下的所有依赖都会被继承

scope 为 test的 jar不要放在 父依赖里，传递不了的。

设计pom

继承 springboot parent 2.7.5

1
2
3
4
5
6
<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.5</version>
        <relativePath/> <!-- lookup parent from repository -->
</parent>

标准所有的需要jar 的version

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
<properties>
    <java.version>11</java.version>
    <mybatis>2.2.2</mybatis>
    <druid>1.2.4</druid>
    <hutool>5.8.8</hutool>
    <mybatisPlus>3.5.2</mybatisPlus>
    <mybatisPlus.extension>3.5.2</mybatisPlus.extension>
    <spring-cloud.version>2021.0.4</spring-cloud.version>
    <spring.cloud.alibaba.version>2021.0.4.0</spring.cloud.alibaba.version>
    <mybatis.spring.boot.starter.version>2.1.3</mybatis.spring.boot.starter.version>
    <mysql.connector.java.version>8.0.16</mysql.connector.java.version>
    <druid.vcerion>1.2.14</druid.vcerion>
    <commons.fileupload.version>1.3</commons.fileupload.version>
    <commons.lang.version>2.6</commons.lang.version>
    <fastjson.version>1.2.74</fastjson.version>
    <spring.data.redis.version>2.7.5</spring.data.redis.version>
    <lombok.version>1.18.20</lombok.version>
    <nacos.version>2021.0.4.0</nacos.version>
    <gateway.version>3.0.2</gateway.version>
    <autoconfig.version>2.7.5</autoconfig.version>
    <spring-boot.version>2.7.5</spring-boot.version>
    <lombok.version>1.18.24</lombok.version>
    <jackson.version>2.13.4.2</jackson.version>

</properties>

在 DependencyManagement 中声明，只有放在 dependencies中才会被全部继承

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-dependencies</artifactId>
            <version>${spring.cloud.alibaba.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
        .....
        .....
        .....
</dependencyManagement>

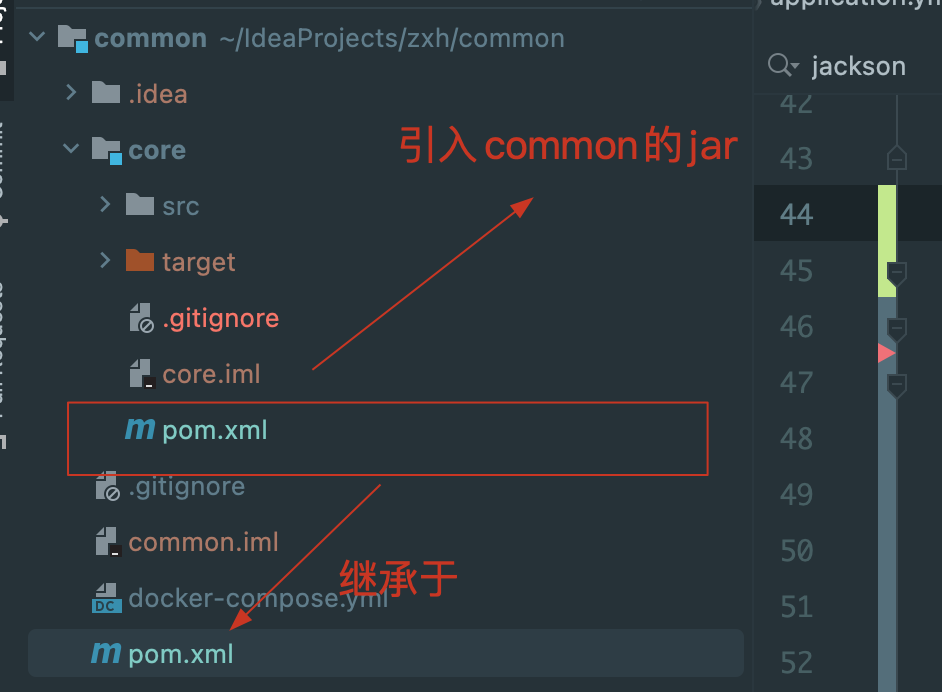

主体结构
